SKIM800 Insulation Monitor

SKIM800 Insulation Monitor

Main circuits and control circuits of IT system below 800Vac and 1000VDC
Description
SKIM800 insulation monitoring device adopts the principle of low-frequency pulse square wave injection to accurately monitor the insulation resistance of AC, DC, and AC/DC hybrid IT systems (unearthed systems) below 1KV. Collaborating with IEX3000 coupler for online monitoring of 1KV~10KV power grid， SKIM800 can be used for main circuits and control circuits.

SKIM800 Insulation Monitoring Device Technical Data Download

SKIM800 Specification
Item Value
IT system Rated Voltage ≤800Vac and 1000Vdc
Power supply AC 85-265V, DC18-36V
Alarm Value Ran 1 1…20MΩ
Response time at R=0.5xRan and G=1 μ F ≤4s
Insulation Alarm Delay 0…9999s
Measure Voltage(U1) 40V
Internal Resistance (R1) ≥180 kΩ
Resistance Measurement Range 1kΩ~20MΩ
AC impedance 0~20mA(≤500Ω)
Measurement Accuracy（1~5 kΩ） 士1 kΩ
Measurement Accuracy（5 kΩ~1MΩ） +10 %
+15 %Permissible Leakage Capacitance （Ce） ≤ 200 μF（Distributed capacitance curve in the manual）

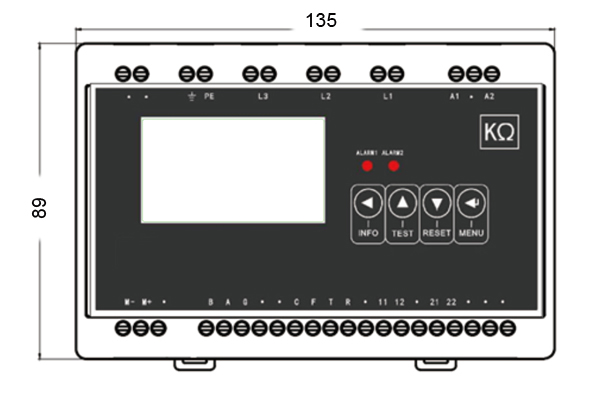

SKIM800 Dimensions:
